High-Accuracy Pressure Transmitters for Smarter HVAC Control

In modern commercial buildings and high-end facilities, HVAC systems are essential for comfort and health, accounting for 40%–60% of energy use. Precise control of temperature, humidity, and fresh air depends on real-time monitoring of water differential pressure, duct static pressure, and equipment status. As the “nerve endings” of HVAC systems, dedicated pressure transmitters provide vital data to improve efficiency, comfort, and smart maintenance.

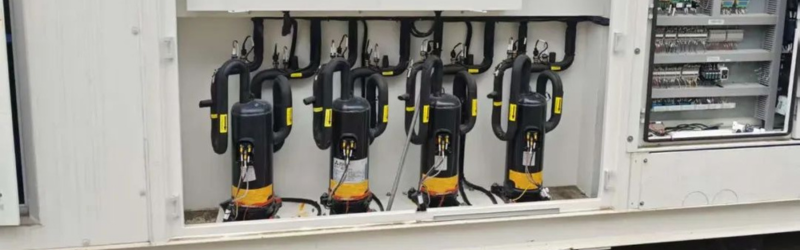

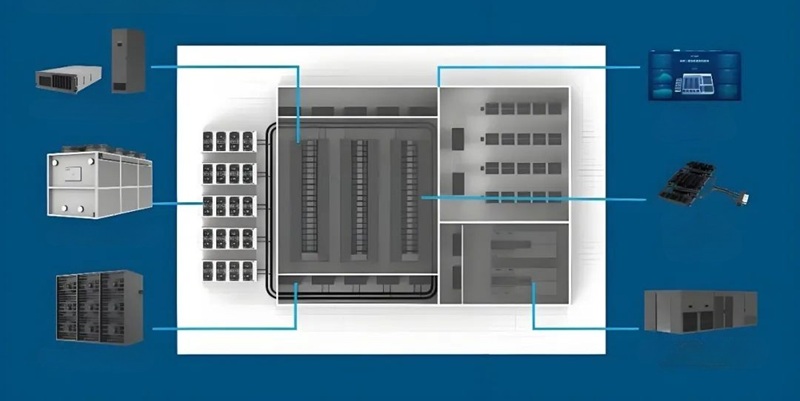

On-site Installation for a Leading Cloud Data Center

01 Background: HVAC Systems — Comfort Regulator Powered by Reliable Pressure Sensing

System Scope

 •Includes chillers and boilers, pumps, air handling units, piping, terminal devices (fan coils, VAV units), and control modules.

Why Pressure Matters

• Hydronic Balance: Chilled/hot water differential pressure is key to stable flow and consistent heating or cooling.

• Airflow Control: Duct static pressure keeps fan speed and VAV dampers properly regulated.

• Equipment Protection: Monitoring pressure across chillers, condensers, evaporators, and pumps helps prevent surge, cavitation, and overpressure failures.

• Energy Efficiency: Dynamic DP control optimizes pump and fan speeds for demand-based operation, reducing energy costs.

• Air Quality Assurance: Monitoring filter differential pressure helps detect clogs in time to ensure clean, fresh air delivery.

Application Challenges

• High Accuracy: Control accuracy within ±1% F.S., e.g., 5–50 Pa for VAV static pressure control.

• Tough Conditions: Humid equipment rooms, vibrating machinery, ceiling ducts — varied installation scenarios.

• Flexible Integration: Supports both analog (4–20 mA) and digital (BACnet MS/TP, Modbus) for building automation systems.

• Low Maintenance: Widely distributed end devices require long-term, maintenance-free reliability.

02 Key Limitations of Standard Transmitters for HVAC

• Limited Accuracy: Low-cost gauges and standard sensors often suffer from high temperature drift and poor repeatability, leading to hydraulic or airflow imbalance and causing rooms to be overcooled or overheated.

• Range Mismatch: HVAC systems involve a wide range of pressures — from ~100 kPa for chilled water systems to as low as 100 Pa for duct static pressure — making it hard for general-purpose sensors to deliver both low-range accuracy and high-pressure durability.

• Humidity Damage:High humidity near cooling towers or other wet areas can cause moisture ingress and connector corrosion, shortening sensor lifespan.

• Vibration Interference:Mechanical vibrations from pumps or fans may create signal noise or cause zero drift over time.

• Complex Installation: Traditional sensors often require extra impulse lines and separate transmitters, making installation difficult in tight pipe corridors or ceiling spaces.

03 Solution: Dedicated HVAC Pressure Transmitters — for HVAC

High-accuracy, digital pressure transmitters are the ideal choice for HVAC pressure monitoring and control. They continuously convert fluid or air pressure in pipes and ducts into precise, standard signals (4–20 mA, 0–10 V, or digital bus) and deliver them in real time to building automation (BAS) or central monitoring systems.

Tailored for HVAC needs, highly integrated transmitters (such as the M20 Pressure Transmitter and MPM4503 Pressure Transmitter) offer reliable performance through advanced design and proven technology.

Precise Low-Pressure Sensing for System Balance

• For Air Systems: Pa-level low-range models with ±0.5% F.S. accuracy, ideal for fine VAV static pressure control.

• For Water Systems: Covers up to 0–4 MPa for water pressure/differential pressure, standard diaphragm seal prevents clogging\

Rugged & Reliable for Demanding Environments

•  Moisture and Corrosion Resistance: IP65 housing, 316L wetted parts, optional gold-plated diaphragm for high-chlorine media

• Anti-vibration design: mechanical damping & digital filtering, pump room ready

• Wide temp compensation: -20°C ~ +85°C, stable accuracy year-round

Built to Withstand Harsh Environments

• Moisture & Corrosion Protection: IP65-rated electronics, 316L stainless steel wetted parts, optional gold-plated diaphragm for high-chlorine areas like swimming pools.

• Vibration Resistant: Mechanical damping and digital filtering reduce noise; vibration tested for reliable pump room installation.

• Wide-Range Temperature Compensation: Automatic compensation from -20 °C to +85 °C ensures year-round accuracy.

Easy Installation & Low Maintenance

• Flexible Mounting: Available with duct clamp kits, magnetic wall/pipe bases, and universal brackets for tight or complex spaces.

• Onsite Zero Calibration: Button or magnetic wand operation allows quick zeroing without disassembly, minimizing maintenance costs.

04 Value: Choose HVAC Sensors for Efficient, Comfortable, and Smart Spaces

Enhanced Comfort

 • Precise pressure control ensures balanced heating and cooling, eliminates hot and cold spots, and improves occupant satisfaction.

Lower Energy Costs

 • Dynamic variable-speed control reduces pump and fan energy use by 20%–40%, cutting operating expenses.

Longer Equipment Life

 • Real-time protection prevents low flow or overpressure damage to chillers, pumps, and other key equipment.

Optimized Maintenance

 • Remote monitoring and alerts reduce manual inspections; maintenance-free design lowers spare parts and service needs.

05 HVAC Monitoring Points

• Chillers & Condensers: Evaporator/condenser differential pressure; chilled water supply/return header DP.

• Water Distribution: Differential pressure at headers, pump inlet/outlet pressure, branch DP for balancing valves.

• Air Handling Units (AHU): Supply/return air static pressure, filter differential pressure, coil pressure drop.

• Variable Air Volume (VAV): Duct static pressure (main duct), box inlet static pressure (terminal control).

• Fan Coil Units (FCU): Optional water valve DP feedback.

• Cooling Towers: Makeup water pressure, distribution pipe pressure.

Expert Team from the MICROSENSOR

• System Diagnostics: Analyze your existing HVAC system, identify pain points, and recommend key monitoring point improvements.

• Precise Selection: Recommend suitable models based on medium (water/air), pressure range, accuracy, and communication protocol.

• Integration Assistance: Provide BACnet point list configuration guidance and help with controller setup and commissioning.

• Custom Solutions: Special mounting brackets, explosion-proof versions (for equipment rooms), and sanitary designs for hospitals or labs.
