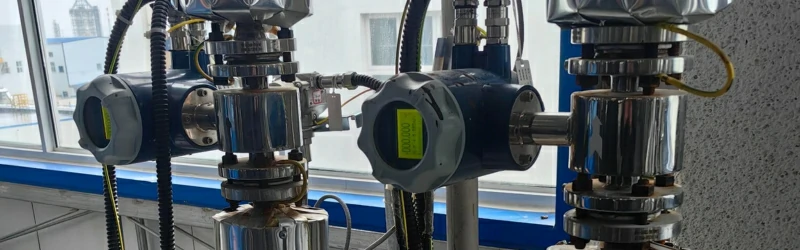

Why Does a Magnetic Flowmeter Deliver High Accuracy?

For industrial process control, accurate flow measurement is a necessity. Among the various flow technologies available, the magnetic flow meter (EMF) consistently stands out for its exceptional precision. This precision stems from their fundamental operating principle, which avoids the deficiencies of mechanical measurement techniques, and is reinforced by design and signal processing. The core reasons can be broken down as follows:

Reason 1: Rooted in Faraday's Law

The high precision of magnetic flowmeters is fundamentally attributable to Faraday's Law of Electromagnetic Induction. The following relationship can express the principle:

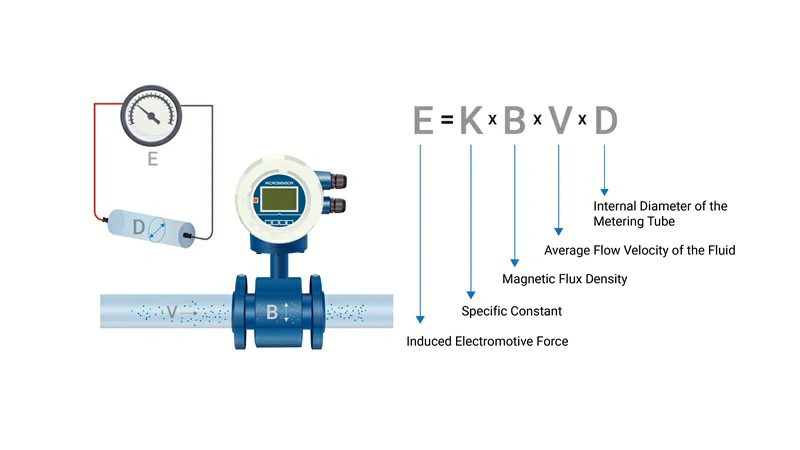

E = k × B × V × D

Where:

k = Specific Constant

k is a fixed value. For example, if all physical quantities in this equation use the International System of Units (SI), then k = 1. In this case, the formula simplifies to E = B × V × D.

B = Magnetic Flux Density

B is not a measured property of the fluid; it is an actively generated and precisely controlled known input. A stable and repeatable magnetic field makes B a deterministic variable in the equation. Its value is known from the design and control of the excitation circuitry.

D = Internal Diameter of the Metering Tube

D is a static and fixed mechanical dimension. It remains constant and is unaffected by process conditions such as fluid temperature, pressure, or density.

V = Average Flow Velocity of the fluid

V is the only variable in the equation that is directly related to the motion of the fluid. Our goal is to measure it.

The precision arises because the measurement equation isolates the average flow velocity(V) as the only uncontrolled variable. After accounting for the controlled B, fixed D, and fixed K, the output E(Induced Electromotive Force, EMF) is linearly and exclusively proportional to the V. What's more, the measurement is inherently insensitive to changes in fluid density, viscosity, temperature, and pressure.

The formula measures the average flow velocity(V) across the entire pipe cross-section, which is precisely the value required for accurate volumetric flow rate calculation(Q = V × A), which is a required parameter in process control and monitoring.

Reason 2: Reinforced by Technical Design

The specific design guarantees high performance in real-world conditions.

1. Obstructionless, Full-Bore Flow Tube

The flow tube has a smooth, uninterrupted liner with no moving parts, protrusions, or restrictions.

2 . Advanced Magnetic Field Excitation Techniques

Early DC excitation suffered from electrochemical polarization at the electrodes. Modern EMFs use sophisticated excitation methods, such as low-frequency rectangular wave AC excitation. Modern excitation actively mitigates polarization and electromagnetic interference, ensuring a stable and clean measurement signal.
