From Data to Action: Pressure, Level, and Flow Optimize Waste Water Treatment

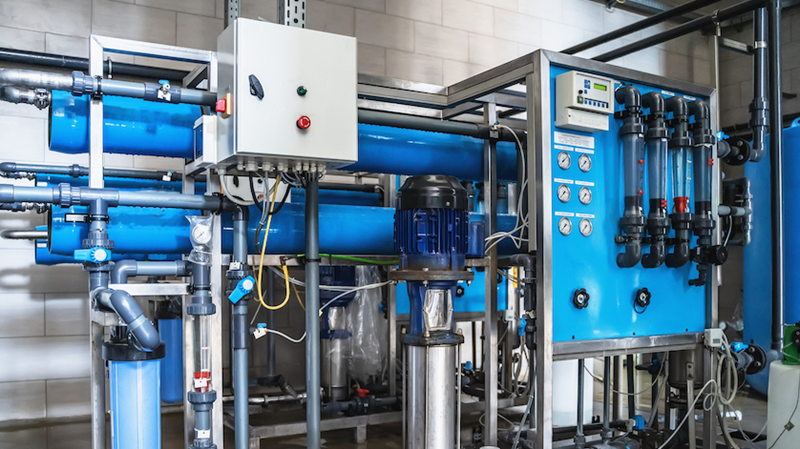

Whether it is the wastewater from our homes, industries, or stormwater runoff, managing wastewater is a complex challenge that is vital for public health and environmental protection. But you can't manage what you don't measure. This is where measuring instrumentation comes in, acting as the "eyes" and "ears" of modern treatment plants. We'll explore the key instruments—for pressure, level, and flow—that keep the treatment process running smoothly.

The Key Measurements: Pressure, Level, and Flow

To transport, treat, and release wastewater safely, treatment plants rely on three fundamental measurement parameters. Each measurement serves a distinct, critical purpose on its own.

Pressure Monitoring: The Unseen Force

Pressure is crucial for ensuring wastewater moves efficiently through the vast network of pipes leading to the plant. Pumps are the "heart" of a collection system. Pressure monitors ensure pumps are working correctly and protect them from running dry or against a closed valve, which can cause damage. They also help identify blockages or leaks in the force mains (pressurized pipes).

Instrument of Choice:

For pump control applications, pressure transmitters or differential pressure transmitters are the common choice. The pressure transmitters must be exceptionally robust and stable in the challenging environment of vibration, moisture, and pressure spikes.

Level Measurement: Knowing Your Volume

Accurately measuring the level in wet wells, equalization basins, clarifiers, and tanks is the critical task. Level data controls pump cycles, prevents overflows (which can cause environmental spills), and determines the residence time for treatment processes. It is also directly used to calculate inflow volume.

Instrument of Choice:

Submersible Level Transmitters are lowered directly into the water or sludge. They measure the hydrostatic pressure exerted by the liquid above them, which is directly proportional to the level. They are perfect for deep wet wells and tanks.

Contactless level sensors are an excellent choice for water treatment applications due to their ability to handle corrosive chemicals, sludge, foam, and varying water conditions without physical contact, thus minimizing maintenance and risk of contamination.

Flow Measurement: Quantifying the Load

Knowing how much wastewater is entering the plant and moving between processes is essential for capacity planning, chemical dosing, and regulatory reporting. Flow data is used to charge industrial users, control the addition of treatment chemicals (like chlorine), and ensure the plant is not being hydraulically overloaded, which reduces treatment efficiency.

Instrument of Choice:

The workhorse for full-pipe flow in wastewater is the electromagnetic flow meter (mag meter). As the conductive wastewater flows through a magnetic field, it generates a voltage proportional to its velocity. No moving parts mean nothing to clog, making it ideal for raw sewage and sludge.

For open channels: In larger pipes that aren't full, flow is often measured by combining a level sensor (like an ultrasonic one) with a Weir or Flume. The level in the specially shaped channel has a known relationship to the flow rate.

Work Together: The Power of Integration

Wastewater treatment is not a single mechanical process. Consequently, when these measurements are combined and their data is analyzed together, they form a feedback loop that allows for advanced process control, optimization, and protection that is far greater than the sum of its parts.

Take the pump station control as an example:

The Synergy: Level + Flow + Pressure

How it works: The water treatment system uses the level in the wet well to determine the number of pumps to run. It then uses flow meters on the discharge line to measure the result of the pumping. Finally, pressure transducers work with VFD to ensure the pump is operating efficiently and avoiding damaging conditions.

Conclusion

In the modern wastewater treatment process, pressure, level, and flow measurements are fundamental for the Supervisory Control and Data Acquisition (SCADA) system. While each has a vital standalone role, it is their integration that transforms raw data into actionable intelligence. This synergy allows for the automated, energy-efficient, and compliant operation of the complex treatment processes, ensuring both environmental protection and economic sustainability.
