New Release: M20H Pressure Transmitter for Liquid Cooling CDU Systems

With the rapid development of large-scale AI models, high-performance computing, and data center infrastructure, power consumption of chip continues to rise; consequently, traditional air-cooling methods are increasingly struggling to meet the heat dissipation demands of high-density computing. Liquid cooling technology is emerging as a key development direction for next-generation data centers.

Among these technologies, direct-to-chip cooling—where coolant makes direct contact with heat-generating modules (such as CPUs and GPUs) via cold plates—is being widely adopted in AI servers, GPU clusters, and high-performance computing environments, thanks to its superior heat dissipation efficiency, lower energy consumption, and strong compatibility with existing server architectures.

Challenges

Within the liquid cooling system, the CDU (Coolant Distribution Unit) performs critical functions such as coolant circulation, pressure regulation, and heat exchange. It offers advantages such as precision cooling, compatibility with existing designs, and maintenance procedures similar to those of traditional systems, earning it the reputation as the "heart" of the liquid cooling system. Pressure parameters—such as supply and return water pressures and pump operating pressures—serve as the vital lifeline ensuring the CDU's stable operation.

• Sudden pressure drop → Risk of leakage, pump cavitation, server downtime

• Excessive pressure differential → Filter clogging, insufficient flow, cooling failure

• Pressure fluctuation → Water hammer, pipeline fatigue, system precision drift

Our Solutions: Designed for Liquid Cooling Applications

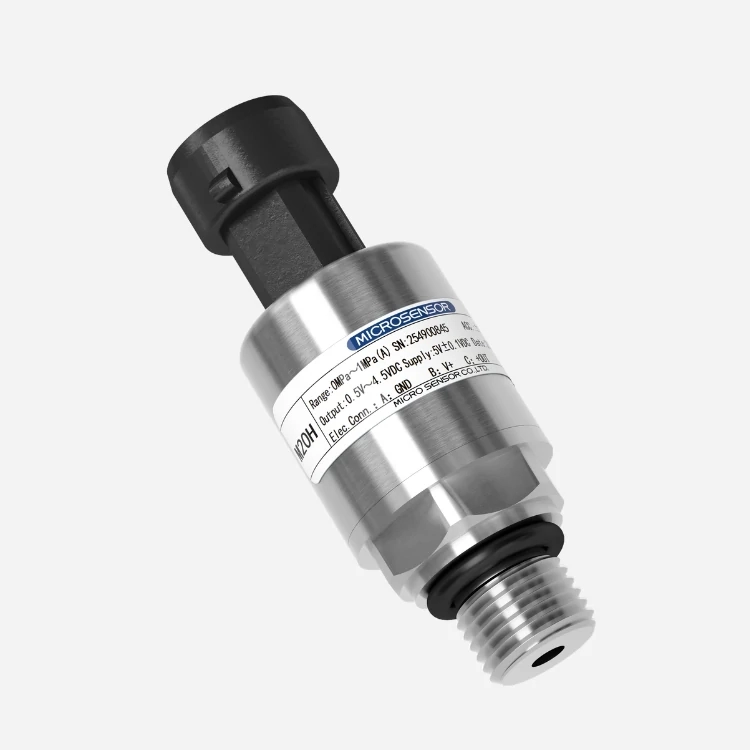

To meet the liquid cooling industry's stringent requirements for stability, safety, and reliability, we officially launch the M20H pressure transmitter, designed specifically for liquid cooling applications.

Rely on 50 years of experience in sensor technology and specifically tailored to the operating conditions of liquid-cooling CDU systems, the M20H pressure transmitter precisely monitors inlet and outlet pressures, filter pressure differentials, and post-pump pressure. They provide reliable data for leak protection, pump speed regulation, blockage alerts, and safety interlocks, thereby ensuring the safe, efficient, and stable operation of liquid-cooling systems.

Core Advantages: Engineered Specifically for Liquid Cooling CDU Systems

✅ All-316L stainless steel construction; compatible with all types of coolants

• All-316L stainless steel structure + EPDM seals + fully welded assembly

• Excellent corrosion resistance and sealing performance

• Compatible with mainstream liquid cooling media such as deionized water and water-glycol mixtures

✅ High precision and rapid response; accurately captures pressure fluctuations

• Accuracy up to ±0.25% FS

• Temperature compensation range: -10°C to 80°C

• Low temperature drift: ≤0.02% FS/°C

• Rapid response to system pressure changes ensures stable liquid cooling operation

✅ High protection rating and wide temperature range; adapts to complex data center environments

• IP67 protected: dustproof, waterproof, and humidity-resistant; suitable for various server room environments

• Operating temperature: -40°C to 125°C; suitable for diverse locations (north/south regions) and both cold/hot aisle zones

• High EMC rating, reverse polarity protection, and overvoltage protection for reliable operation

• High withstand voltage rating (50Hz, 1800VAC/1min, leakage current < 0.5mA) to handle potential voltage spikes

✅ Standard signals and easy installation; plug-and-play for seamless integration

• Output: 0.5–4.5V

• Power supply: 5V DC ±0.1V DC

• Supports various mounting interfaces, including G1/4

• Compact design suitable for tight installation spaces

• Customization and rapid delivery available

✅ International certifications: meet global market demands

• CE and RoHS certified

• Designed to meet UL standards

• UL certification available upon request

Embracing the Future of Liquid Cooling: Building a Reliable Pressure Defense for Computing Infrastructure

From AI servers to high-density data centers, liquid cooling technology is rapidly becoming the industry standard.

With its stable, precise, and reliable pressure measurement capabilities, the M20H pressure transmitter provides robust support for liquid cooling CDU systems, helping customers build computing infrastructure that is safer, more efficient, and more energy-efficient.

Reliable measurement, precision protection for core components.

The M20H—advancing alongside the era of liquid cooling.
