Smart Pressure Transmitters Drive Growth in the Maritime Industry

Background

Driven by increasingly stringent global environmental regulations, the maritime sector is rapidly transitioning from traditional fuel oils to Liquefied Natural Gas (LNG) and other clean energy alternatives. Utilizing LNG as marine fuel reduces carbon emissions by over 20%, eliminates sulfur oxides (SOx) completely, and reduces particulate matter (PM) emissions by more than 90%.

As part of China's inland vessel retrofit initiative, a shipping operator converted its fleet of container vessels to LNG power. Operating deep within the fuel supply systems, highly reliable pressure monitoring is vital to ensure the safe and efficient delivery of LNG under extreme working conditions.

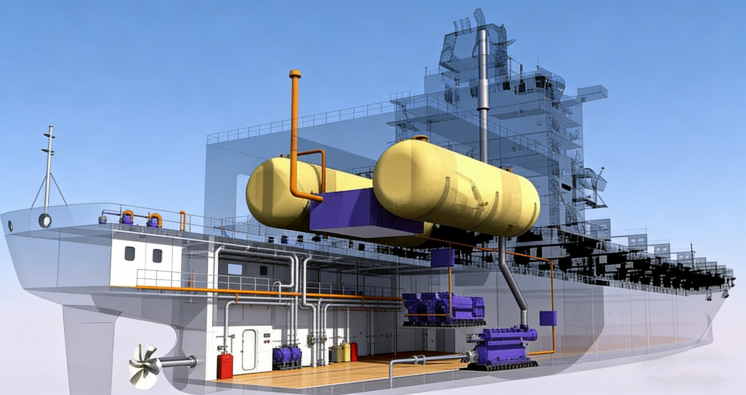

Application Challenges

Transitioning a vessel from conventional fuel oil to LNG involves complex engineering. The physical properties of LNG present unique operating challenges for pressure measurement instruments:

•Severe Mechanical Vibration & Signal Drift: Engine vibration and vessel motion at sea frequently lead to signal instability and measurement drift in standard pressure instruments.

•High Explosion Risk: LNG is highly flammable. Fuel tanks, piping manifolds, and key supply nodes demand stringent explosion-proof safety standards.

•Harsh Corrosive Environments: Marine environments expose instruments to continuous salt spray, high humidity, and sea splash, leading to rapid corrosion and degradation.

The Solution

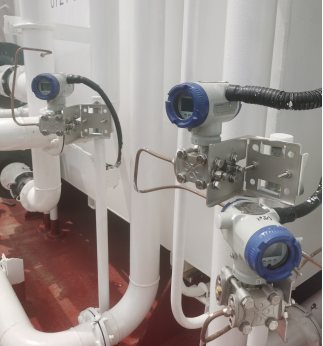

To address these technical hurdles, the customer selected Micro Sensor’s MDM7000-DP (Differential Pressure) and MDM7000-GP (Gauge Pressure) smart pressure transmitters for critical system monitoring:

•Superior Vibration Resistance: Featuring vibration effect specs below 0.1%, the transmitters maintain standard high accuracy of ±0.075% F.S. even under severe dynamic conditions.

•Certified Flameproof & Intrinsically Safe: Certified under multiple global hazardous location standards, ensuring reliable and safe operation around flammable gases.

•Robust Enclosure & Corrosion Protection: Rated IP67 and passed WF2 anti-corrosion testing, ensuring long-term endurance against salt fog and harsh marine atmospheres.

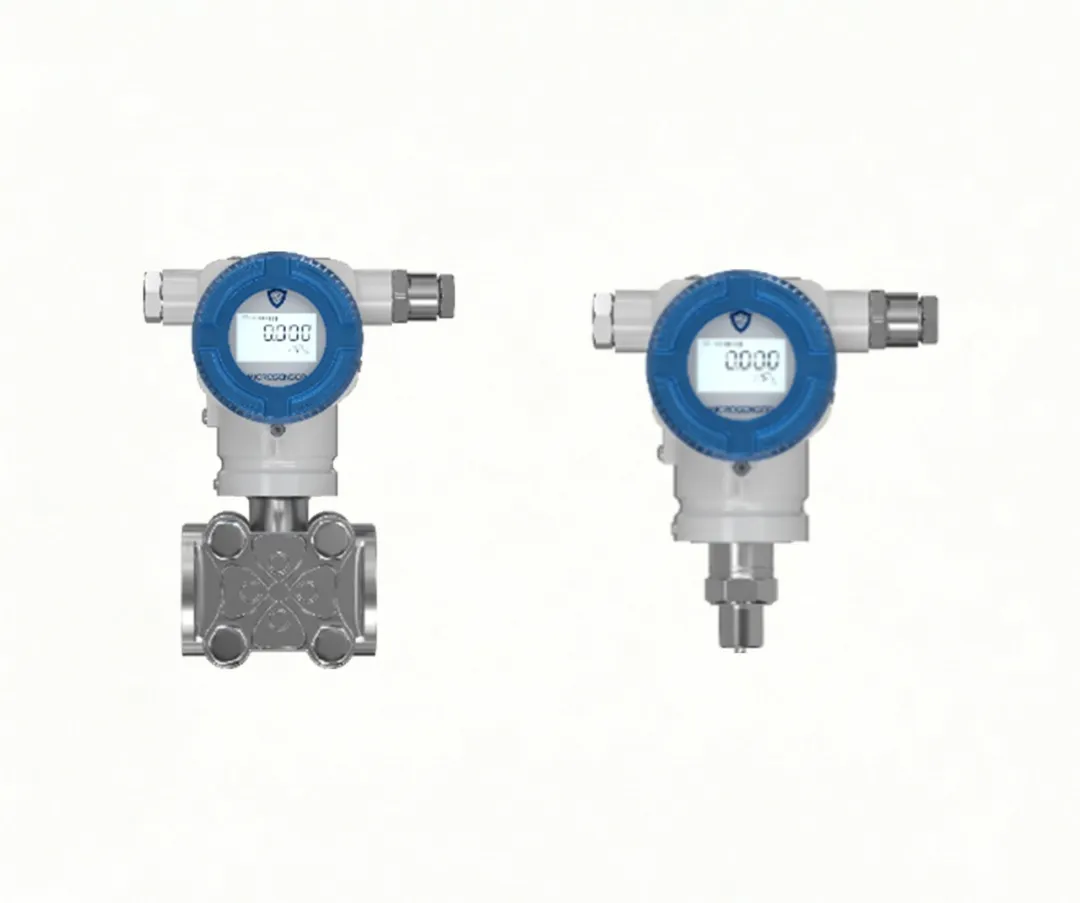

Product Highlights: MDM7000 Smart Pressure Transmitter

•8 Major Class Society Approvals: Certified by DNV, CCS, RS, NK, ABS, BV, KR, and LR, meeting international maritime compliance requirements.

•Comprehensive Hazardous Area Certifications: Compliant with NEPSI and PCEC explosion-proof (Flameproof & Intrinsically Safe) standards, alongside international ATEX, IECEx, and CSA certifications.

•High Accuracy & Low-Span Capability: Accuracy up to ±0.05% FS / ±0.075% FS; minimum differential pressure span capability down to -100 Pa to +100 Pa.

•High Static Pressure Rating: Designed to withstand static working pressures up to 42 MPa.

•Modular Dual-Compartment Architecture: IP67-rated dual-chamber design isolates electronics from terminal wiring, significantly reducing maintenance and operational costs.

•Versatile Housing Materials: Available in Aluminum Alloy, 316L Stainless Steel, and low-copper/zinc options to suit various harsh process media and environments.

•Wide Temperature Compensation & EMC Performance: Full thermal compensation from -40°C to +70°C; superior EMC performance with CE and RoHS compliance.

Summary & Conclusion

With high reliability, extreme stability, and comprehensive maritime certifications, the Micro Sensor MDM7000 Smart Pressure Transmitter serves as a trusted solution for marine fuel conversions and offshore engineering applications.

Facing pressure, level, or temperature measurement challenges in your marine projects? Contact Micro Sensor’s engineering team today for custom-tailored measurement solutions.
