Differential Pressure Sensor
MDM293
- · Φ12.6×18mm
- · 2Bar ‒ 35Bar
- · Compensated temperature: 0~70℃
Used For
Gas & Liquid Pressure Measure, Pressure Checking Meter, Pressure Calibrator, Venturi and Vortex Flow Meters
Leave a MessageMDM293
Used For
Gas & Liquid Pressure Measure, Pressure Checking Meter, Pressure Calibrator, Venturi and Vortex Flow Meters
Leave a MessageMDM293 Differential Pressure Sensor is an OEM sensing element with stainless steel isolated diaphragm. The differential pressure being measured is transferred to the silicon pressure sensor via the isolation diaphragm and the silicone oil filling, ensuring precise measurement of the differential pressure. This model is small in size, strong in hydrostatic pressure resistance, high in precision, stable and reliable.
Features
• Pressure Range: 0bar~2bar…35bar
• Constant current or constant voltage power supply
• Isolated Construction, enable to measure various media
• OEM differential pressure sensor
• Full stainless steel 316L
• High static pressure 200bar
Electrical Performance
• Power Supply: ≤2.0mA DC
• Electrical Connection: 100mm silicon rubber flexible wires
• Common mode voltage output: 50% of input (typ.)
• Input Impedance: 2kΩ~5kΩ
• Output Impedance: 3.5kΩ~6kΩ
Construction Performance
• Diaphragm: Stainless steel 316L
• Housing: Stainless steel 316L
• Pin: 100mm silicon rubber flexible wires
• O-ring: FKM
• Net weight: ~20g
Image:
MDM293 Differential Pressure Sensor is an OEM sensing element with stainless steel isolated diaphragm. The differential pressure being measured is transferred to the silicon pressure sensor via the isolation diaphragm and the silicone oil filling, ensuring precise measurement of the differential pressure. This model is small in size, strong in hydrostatic pressure resistance, high in precision, stable and reliable.
Features
• Pressure Range: 0bar~2bar…35bar
• Constant current or constant voltage power supply
• Isolated Construction, enable to measure various media
• OEM differential pressure sensor
• Full stainless steel 316L
• High static pressure 200bar
Electrical Performance
• Power Supply: ≤2.0mA DC
• Electrical Connection: 100mm silicon rubber flexible wires
• Common mode voltage output: 50% of input (typ.)
• Input Impedance: 2kΩ~5kΩ
• Output Impedance: 3.5kΩ~6kΩ
Construction Performance
• Diaphragm: Stainless steel 316L
• Housing: Stainless steel 316L
• Pin: 100mm silicon rubber flexible wires
• O-ring: FKM
• Net weight: ~20g
Read / Download our Datasheet in PDF
Download
- Related Products
- Related Accessories
-
-
Monosilicon Hygienic Pressure Transmitter
Pressure type: Gauge
Details
Range: 0.1bar~25bar
Output signal: 4~20mA, 4~20mA+HART, Modbus-RTU/RS485 and others
Reference accuracy: ±0.2% upper range limit, maximum ±0.5% upper range limit -
Hygienic Temperature Transmitter
Measuring range: -50~400℃
Details
Output signal: 4~20mA、Modbus-RTU/RS485 and others
Reference accuracy: ±0.5% upper range limit -
Pressure Transmitter Suitable For General Industry
Range: 0~250mbar to 0~250bar
Details
Accuracy:±0.25%FS, ±0.5%FS
Output: 4mA~20mA DC, 0/1V~5/10V DC, 0.5V~4.5V DC
Relate Solutions
-

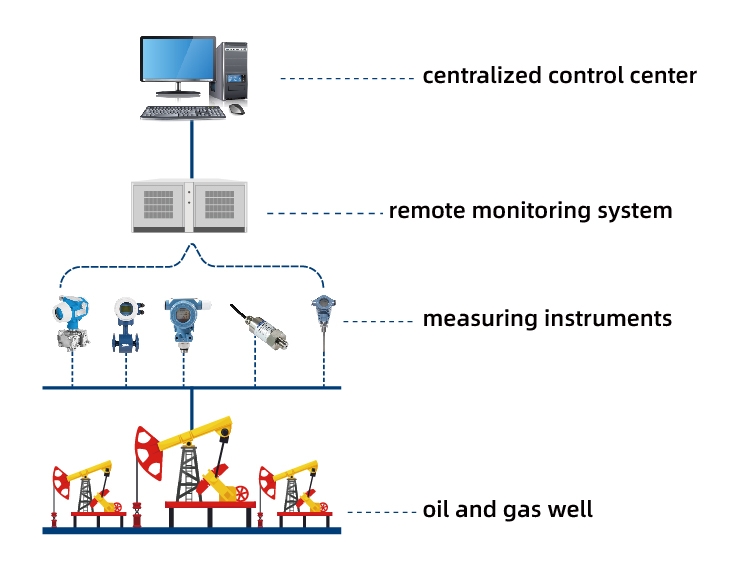

Oil and Gas Wells Remote Monitoring
