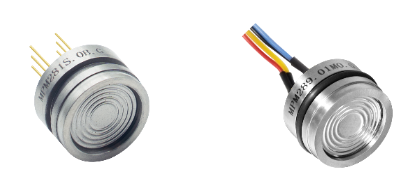

New from Micro Sensor: MPM281S and MPM289 Pressure Sensors

Micro Sensor Co., Ltd. (Micro Sensor) is pleased to announce that after years of process research, the MPM281S Pressure Sensor is now in mass production. Meanwhile, the MPM289 Pressure Sensor has completed its standardized configuration and is fully stocked for immediate global shipping.

MPM281S: High Precision & Long-Term Stability

The MPM281S Pressure Sensor is the result of years of intensive R&D in material science and MEMS processing. It delivers exceptional long-term stability (±0.1% FS/year), providing a high-performance and reliable sensing module for premium instrumentation manufacturers who demand zero compromise on precision.

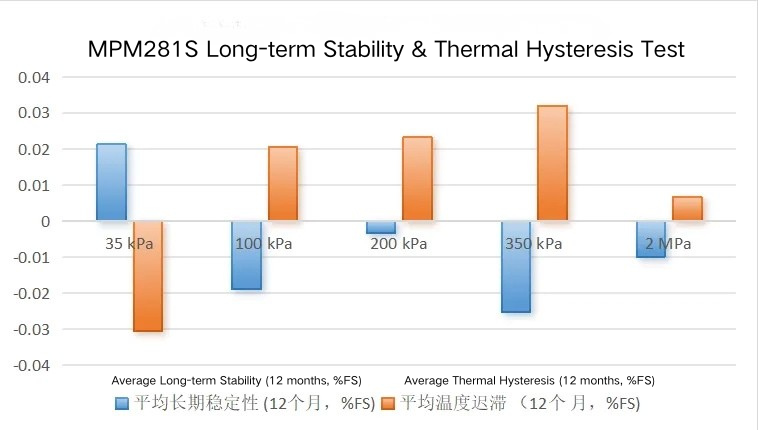

•Exceptional Stability: Long-term stability of ±0.1% FS/year and thermal hysteresis within ±0.10% FS.

•Supply Chain Security: Provides a robust and reliable alternative for manufacturers of high-end transmitters and metrology-grade gauges, ensuring a secured long-term component supply.

•Applications: High-precision transmitters, laboratory testing instruments, and pressure compensation for metrology-grade flowmeters.

MPM281S Technical Specifications

•Pressure Range: 0.2bar to 35bar

•Non-linearity: ±0.15% FS (Typ. BFSL)

•Repeatability/Hysteresis: ±0.03% FS

•Temp. Error (Zero/Span): ±0.5% FS @ 35℃

•Dimensions: φ19 x 11.5 mm

MPM289: Standardized Configuration & Optimized Value

Built upon the proven design and manufacturing standards of the mature MPM281 Series, the new MPM289 Pressure Sensor is engineered to be the premier cost-optimized choice. By unifying technical specifications and standardizing configurations, it simplifies the selection process while delivering exceptional reliability for diverse industrial applications.

•Immediate Availability: Optimized for stock-based sales, ensuring rapid delivery and uninterrupted service for our global partners.

•Rugged Reliability: Combining field-proven technology with a robust structural design, it ensures consistent performance across diverse applications, from standard level transmitters to IoT wireless terminals.

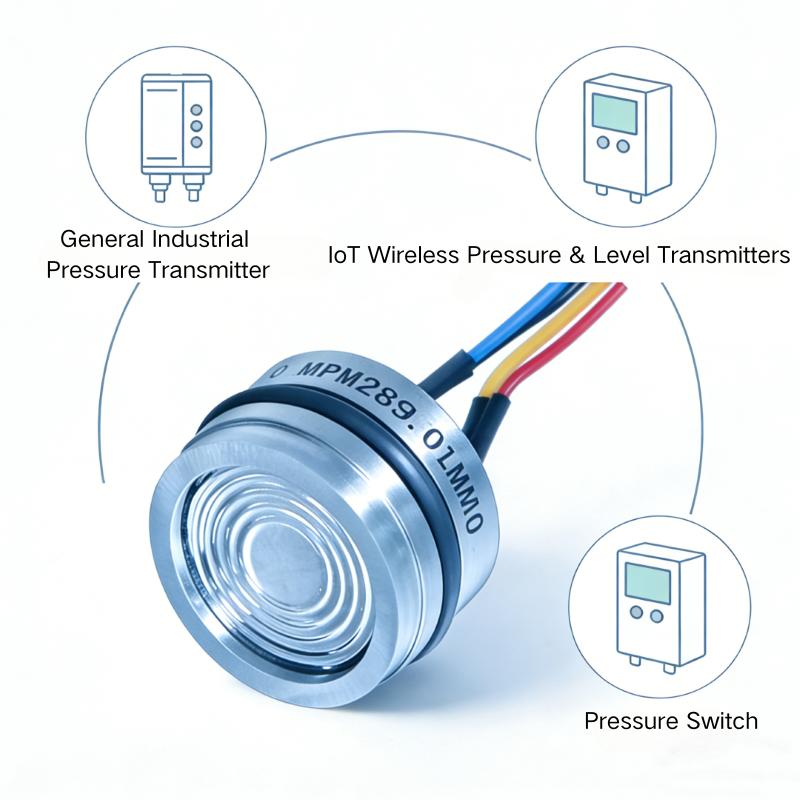

•Applications: General pressure/level transmitters, IoT wireless terminals, and electronic pressure switches.

MPM289 Technical Specifications

•Pressure Range: 0.2bar to 1000bar

•Non-linearity: ±0.25% FS (Max. BFSL)

•Temp. Error (Zero/Span): ±0.75% FS @ 35℃

•Long-term Stability: ±0.20% FS/year (>35kPa)

•Dimensions: φ19 x 11.5 mm

*Refer to the official datasheet for detailed specifications.

Our Strategic Commitment

Micro Sensor remains dedicated to its three core pillars: Technological Independence, Globalized Products, and Localized Service. We continue to invest in R&D to push the boundaries of high-precision, low-drift sensing technology, building a robust ecosystem for the global industrial sensing industry.

About Micro Sensor

Since its inception in 1993, Micro Sensor Co., Ltd. (Micro Sensor) has been a global manufacturer and service provider of industrial measurement and control instruments.

With over 30 years of technical expertise, it specializes in high-precision and customized solutions for pressure, level, temperature, and flow measurement. Micro Sensor's portfolio supports key industries worldwide, including Oil & Gas, Renewable Energy, Industrial Gases, Water & Wastewater, Marine & Shipbuilding, HVAC, Hydraulics & Pneumatics, and Industrial Automation.

Committed to precision and innovation, Micro Sensor empowers global industries to achieve smarter and more efficient operations through reliable sensing technologies.
