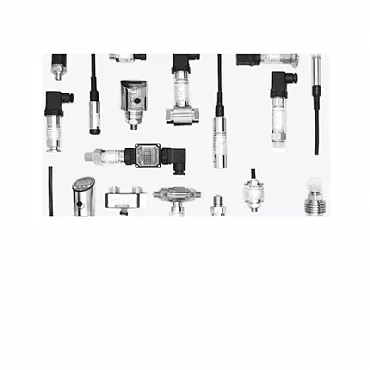

Industrial Pressure Transmitters

Our industrial pressure transmitters streamline physical mounting, electrical wiring, and controller setup across both legacy and modern automated systems.

Integrating pressure transmitters into your system shouldn't compromise project timelines or require complex field retrofits. Our industrial pressure transmitters streamline every stage of installation—from mechanical mounting to controller setup.

Standardized Electrical Interfaces: To eliminate installation bottlenecks in international projects, our pressure transmitters support both global standard connectors and region-specific electrical interfaces.

Flexible Process Connections: Built with industry-standard thread profiles (G1/4, NPT1/4, M20×1.5, and hygienic tri-clamps) for direct mechanical installation into existing pipelines, manifolds, or pressure vessels.

Universal Controller Compatibility: Fully compatible with Programmable Logic Controllers (PLCs), Supervisory Control and Data Acquisition (SCADA) systems, and Distributed Control Systems (DCS). Signal outputs—spanning standard analog to digital protocols.

Wetted Materials Compatibility for Industrial Media

In pressure measurement, matching the pressure sensor's wetted components to the process medium is critical for long-term stability and equipment longevity. Our industrial pressure sensors offer a comprehensive range of material configurations and constructions engineered across different media of clean fluids, slurries, acids, and high-temp steam.

1. Standard Clean Fluids & Non-Corrosive Gases

Target Media: Compressed air, nitrogen, inert gases, hydraulic oils, lubrication oils, clean industrial water, and HVAC liquids.

✅ Available Wetted Materials: 304 / 316L Stainless Steel

316L stainless steel provides excellent mechanical strength, high burst pressure resistance, and sufficient corrosion resistance for general automation at an optimal cost-to-performance ratio.

2. High-Viscosity, Slurry & Crystallizing Media

Target Media: Heavy crude oil, polymer melts, paper pulp, wastewater, paints, adhesives, and fluids with suspended solids.

✅ Available Wetted Materials & Constructions: 316L Stainless Steel / Hastelloy C-276 (Flush Diaphragm & Diaphragm Seals)

Standard pressure ports clog easily when exposed to viscous or solid-bearing fluids. Flush diaphragms and direct-mount diaphragm seals eliminate cavities where media can accumulate, ensuring continuous fluid contact and easy clean-in-place (CIP) maintenance.

3. Corrosive Chemicals, Acids & Brine

Target Media: Hydrochloric acid, sulfuric acid, nitric acid, wet chlorine, seawater, brine, and strong alkaline solutions

✅ Available Wetted Materials: Hastelloy C-276, Tantalum, Titanium, Monel

Isolates the sensitive pressure sensor chip behind a specialized alloy barrier, preventing severe chemical pitting, stress corrosion cracking, and premature diaphragm perforation.

4. High-Temperature & Thermal-Extreme Media

Target Media: Superheated steam, heat transfer fluids (thermal oil), boiler feed water, and hot refinery process streams.

✅ Available Wetted Materials & Configurations: 316L / Special Alloys paired with Remote Capillaries or Cooling Elements, Specialized Thermal Fill Fluids (High-Temp Silicone or Fluorocarbon Oils)

Direct exposure to high process temperatures can degrade internal electronics and cause thermal zero drift. Remote capillary tubes or cooling fins dissipate process heat, while low-vapor-pressure fill fluids ensure stable hydraulic pressure transmission without vaporizing or outgassing under thermal stress.

The above represents a selection of common industrial media. If your process involves chemical formulations, mixed-phase fluids, untried media, or extreme operating conditions not detailed here, contact our engineering team directly. We'd be pleased to evaluate your specific projects for the optimal configuration.

Industrial Pressure Transmitter Manufacturer

As a global instrumentation manufacturer of pressure, level, flow, and temperature, MICROSENSOR provides fit-for-purpose industrial pressure measurement solutions. Supported by ISO9001, ISO14001, and ISO45001 manufacturing management systems, from pressure sensing elements manufacturing to final temperature compensation, we control the entire production process to ensure consistent quality.

Whether you require compact transmitters for hydraulics, pumps, and HVAC, or smart process transmitters with diaphragm seals for extreme temperatures and aggressive media, contact us for expert guidance and technical support.
